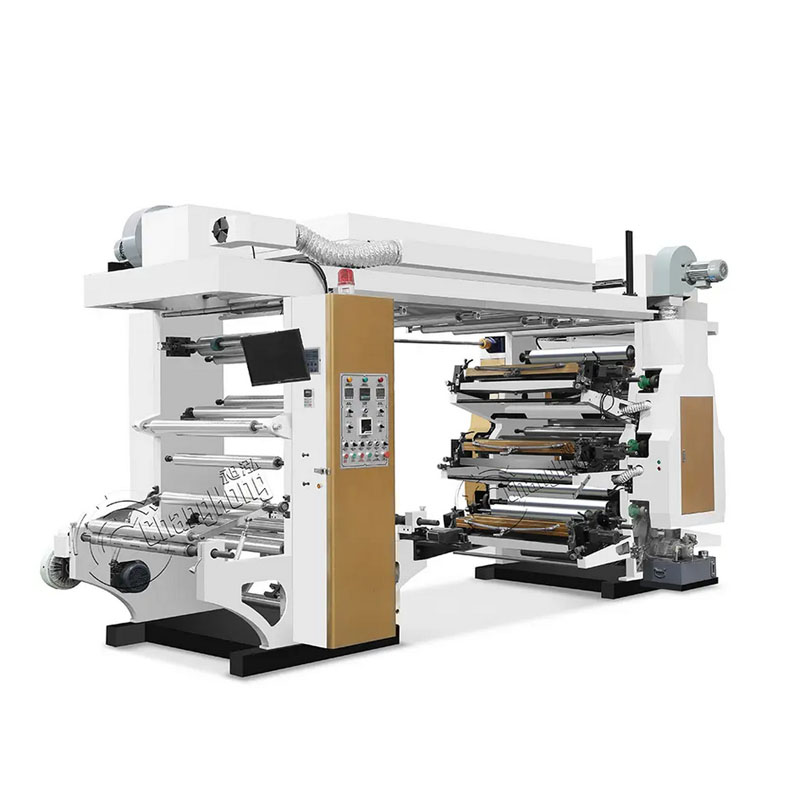

8 colour stack type flexo printing machine

8 colour stack type flexo printing machine
  • Model Number: CH8-600H
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 0 Pieces
  • Supply Capacity: 0 Pieces/month
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

8 colour stack type flexo printing machine Description

Product Name: 8 colour stack type flexo printing machine

Machine Features

  • Machine form: Use big gear drive and register the color more accurate.
  • The structure is compact. The parts of the machine can interchange standardization and easy to get. And we chooser low abrasion design.
  • The plate is really simple. It can save more time and cost less.
  • The printing pressure is smaller. It can decrease the waste and make the service life longer.
  • Print many kinds of material include various thin film reels.
  • Adopt high quality Ceramic Anilox roller to increase the printing effect.
  • Adopt imported electric appliances to make the electric circuit control stability and safety.
  • Machine Frame: 75MM thick iron plate. No vibration at high speed and have a long service life.

technical specifications

ModelCH8-600HCH8-800HCH8-1000HCH8-1200H
Max. Web value650mm850mm1050mm1250mm
Max. Printing value550mm750mm950mm1150mm
Max. Machine Speed150m/min
Printing Speed100m/min
Max. Unwind/Rewind Dia.?800mm
Drive TypeGear drive
Plate thicknessPhotopolymer plate 1.7mm or 1.14mm (or to be specified?ÒD/td>
InkWater base ink or solvent ink
Printing length (repeat)270mm-900mm
Range Of SubstratesLDPE; LLDPE; HDPE; BOPP, CPP, PET; Nylon?ØSAPER?ØQONWOVEN
Electrical supplyVoltage 380V. 50 HZ.3PH or to be specified

Product Tags:Flexo Printing Machine,
