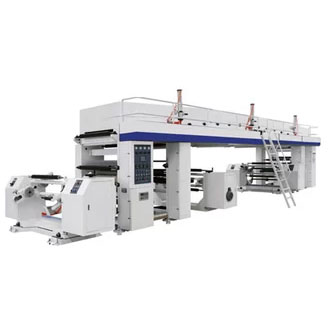

high speed paper / plastic film dry machine Description
Product Name: high speed paper / plastic film dry machine
Main characteristics
1) Text man-machine interface operate
2) Double work station rotary unwinding and rewinding shelf, auto receiving without stop in rewinding
3) Photocell correct function in first unwinding and second unwinding.
4) Dry system: Pneumatic cling four segment oven, every segment control by intelligent thermo - controller constant control, cycle air device, over guide roll transmission by independent frequency motor
5) Anliox is shaftless, load and unload quickly, easy to operate
6) Anliox blade is pneumatic back press structure, left-right move type.
7) Laminating roll hot-oil heat type options: Inside heat type or outside heat type
8) Wind film tension is four motor scychronous closed loop constant tension device, low friction cylinder of tension float roll, ultra-low friction cylinder are all Japan (Fujikura)brand
9) Atmosphere appearance, humanized ladder, hallway, light, let user easy to use, relax and happy
| type | 800 | 1000 | 1200 |
| useful laminating width | 800mm | 1000mm | 1000mm |
| Max width of material | 850mm | 1050mm | 1050mm |
| Highest laminating speed | 150m/min | 150m/min | 150m/min |
| Highest machinery speed | 160m/min | 160m/min | 160m/min |
| Max diameter of unwinding and rewinding | ?600mm | ?600mm | ?600mm |
| Length of heat oven | 10000mm | 10000mm | 10000mm |
| Heat oven heating power | 72kw | 84kw | 92kw |
| Total power | 128kw | 140kw | 154kw |
| weight | 10000kg | 11000kg | 12000kg |
| Overall dimensions | 12500?4000?3200mm | 12500?4200?32000mm | 125000?4400?3200mm |
